ZBD 3501 – ND 350 bar – data sheet

PDF-document [2.1 MB]

Suitable mounting parts DIN 24337

PDF-document [775.3 KB]

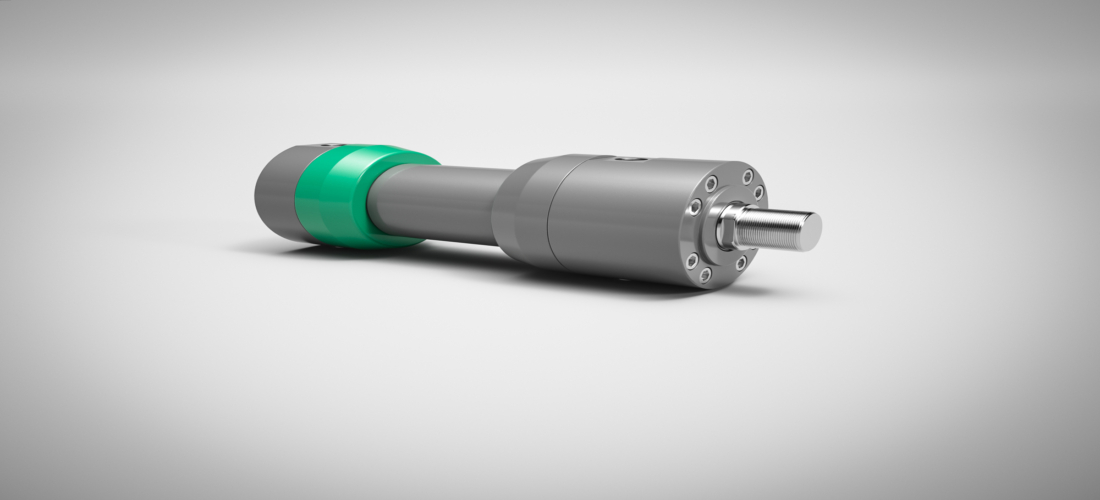

ZBD 3501 – Standard hydraulic cylinders – Nominal pressure 350 bar (35 MPa)

Good to know: This STORZ hydraulic cylinder series is designed for system pressures up to 350 bar in quasi static operation.

  • Each cylinder diameter is assigned a piston rod diameter with the area ratio j=2
  • All piston rods are induction hardened and hard chrome plated
  • In the 4 most common mounting types

Please note: not for applications with predominantly high-frequency and pulsating loads

Technical data

Nominal pressure: 350 bar (35 MPa)
Static test pressure: 375 bar (37,5 MPa)
Piston diameter: 50-100 mm
Area ratio j: 2
Temperature range: -20…+80 °C
Viscosity range: 10…600 mm²/s
Lifting speed: 0-1 m/s depending on seal variant
Operating medium: Mineral oil according to DIN 51524, HFD fluids HFA, HFB and HFC fluids possible through special designs

Mounting types

3501_b

B Cylinder with trunnion

3501_ca

CA Round flange on cylinder head

3501_cb

CB Round flange at cylinder bottom

3501_db

DB Joint eye at cylinder bottom
